Towing Label – Why is it Important?

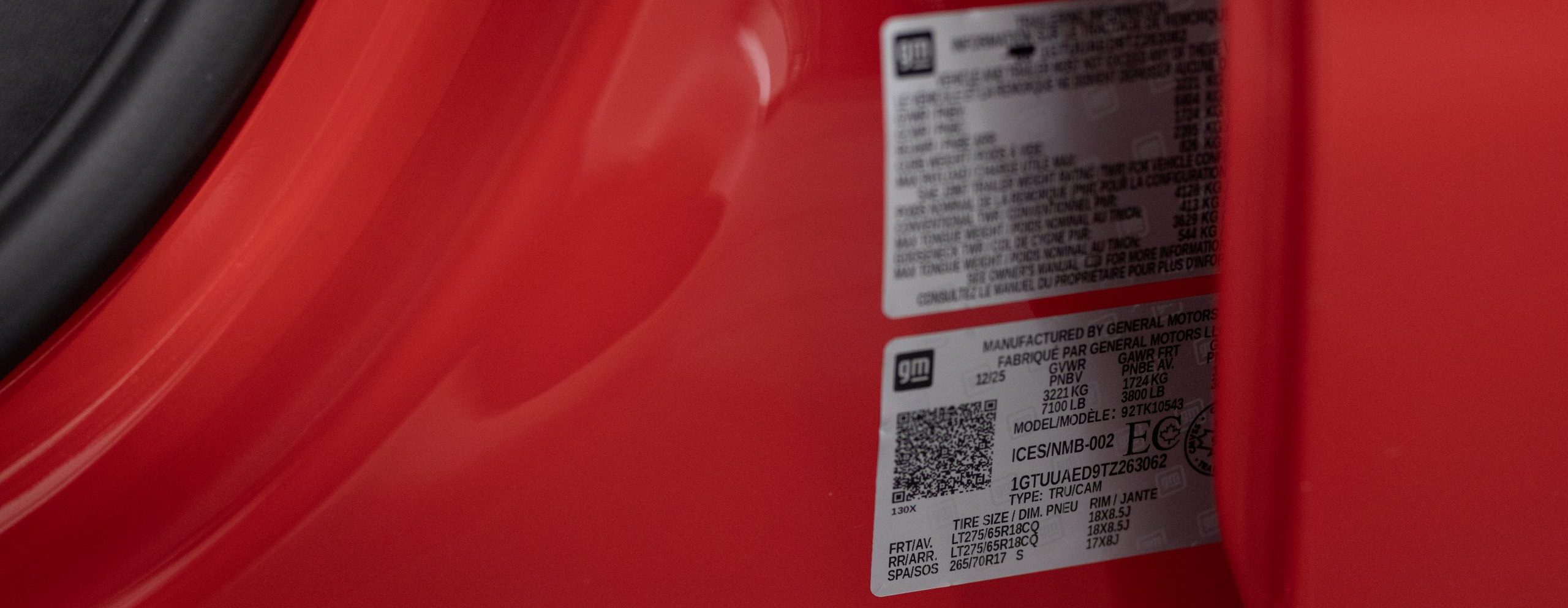

Towing Label -why is it important? If you’re new to towing, or you have thousands of hauling hours under your belt, one of the most important (and most overlooked) tools on your truck isn’t a feature you tap on a screen — it’s the GMC's Towing Label on your driver’s door frame.
Whether you’re looking at a 2026 GMC Sierra 1500 or a 2026 GMC Sierra HD (2500HD / 3500HD), the towing and weight information label on the driver-side door frame (the B-pillar) tells you exactly what your specific truck is capable of handling safely.
The towing label contains factory-assigned weight ratings specific to your truck’s:
- Engine
- Cab size
- Bed length
- Drivetrain (2WD/4WD)
- Axle ratio
- Installed trailering packages
These numbers are far more accurate than a brochure or online chart, because they apply to your exact VIN and build configuration of the specific truck you are looking at.
GVWR – Gross Vehicle Weight Rating
This is the maximum your truck can weigh by itself.
It includes:
- The truck
- Fuel and fluids
- Passengers
- Cargo in the bed
- Trailer tongue weight
Why it matters:
If you exceed this number, you’re overloading the truck — which affects braking, suspension, tire wear, and overall safety.
GCWR – Gross Combined Weight Rating
This is the maximum weight of your truck AND trailer combined.
Why it matters:
Even if your trailer is under the advertised towing capacity, you could still exceed GCWR if your truck is heavily loaded with passengers and gear.
GAWR – Gross Axle Weight Rating (Front & Rear)
Each axle has its own maximum weight limit.
Why it matters:When towing, most of the trailer’s tongue weight sits on the rear axle. Overloading it can impact stability, steering, and braking performance.
Maximum Payload
Payload is how much weight your truck can carry in the cab and bed.
That includes:
- People
- Tools
- Coolers
- Firewood
- Trailer tongue weight
Important: Tongue weight counts as payload.
Many first-time towers don’t realize this — and it’s one of the most common mistakes we see.
Maximum Trailer Weight
This is the headline number most shoppers look for.
It tells you the maximum trailer weight your specific truck is rated to tow under proper conditions. But here’s the key: It only applies if you stay within all other ratings (GVWR, GCWR, GAWR, payload).
Sierra 1500 vs. Sierra HD: What’s Different?
Both trucks provide detailed towing information on the door label, but they’re designed for very different levels of capability.
2026 GMC Sierra 1500 (Light-Duty)
The 2026 GMC Sierra 1500 is ideal for:
- Travel trailers, Boats, Utility trailers, Small campers, Weekend recreational towing
On the label, you’ll typically see:
- GVWR
- GAWR (front and rear)
- GCWR
- Maximum conventional trailer weight
- Payload rating
When properly equipped, some Sierra 1500 models can tow up to approximately 13,000+ lbs — but your actual number depends on the configuration of your truck
Best used for: Customers who want strong towing capability with everyday comfort and fuel efficiency.
2026 GMC Sierra HD (2500HD & 3500HD)
The 2026 GMC Sierra 2500HD and 2026 GMC Sierra 3500HD are built for serious hauling. These trucks are designed for:
- Large fifth-wheel RVs, Heavy equipment trailers, Horse trailers, Commercial loads
On HD models, the label often includes separate ratings for:
- Conventional towing
- Fifth-wheel towing
- Gooseneck towing
These ratings are significantly higher than the 1500 — especially on properly equipped 3500HD models.
Best used for: Customers towing heavy RVs or commercial-grade loads who need maximum stability and strength.
Why This Label Is One of the Most Important Safety Features on Your Truck
✔ It’s Specific to Your Exact Truck: No guesswork. No brochure confusion. It reflects your exact build.
✔ It Prevents Costly Mistakes: Overloading can lead to:
- Brake wear, Suspension damage, Tire failure, Reduced control, Voided warranties
✔ It Helps You Choose the Right Trailer: Before buying a camper or trailer, checking this label ensures a perfect match for your needs
✔ It Keeps You Legal and Protected: Staying within ratings protects you in the event of inspections or insurance claims.
Common First-Time Towing Mistakes (And How This Label Helps Avoid Them)
- Only looking at “max towing” in ads
- Forgetting that passengers reduce payload
- Not accounting for tongue weight
- Assuming all trucks of the same model can tow the same weight
Your door abel solves all of these.
Not Sure What Your Numbers Mean? We Can Help. Towing can feel complicated at first — but it doesn’t have to be.
Bring us:
- A photo of your door jamb label
- The trailer specs you’re considering
Our team will walk you through:
- Real-world towing capacity
- Hitch recommendations
- Brake controller setup
- Weight distribution systems
- Safe loading practices
Our goal is simple: help you tow confidently, safely, and within your truck’s capability.
